Four models, selected by wall thickness
All four share the epoxy surface, the metal locating notch, the shipped tolerances and the antistatic option. The internal structure changes with wall thickness.
Pick by wall thickness
Every model ships with the same epoxy surface system (Shore D82; D90 on X-MUT) and the same shipped tolerances. The internal structure changes with wall thickness.
Compare all four models
- Wall thickness
- 1 – 1.2 mm
- Structure

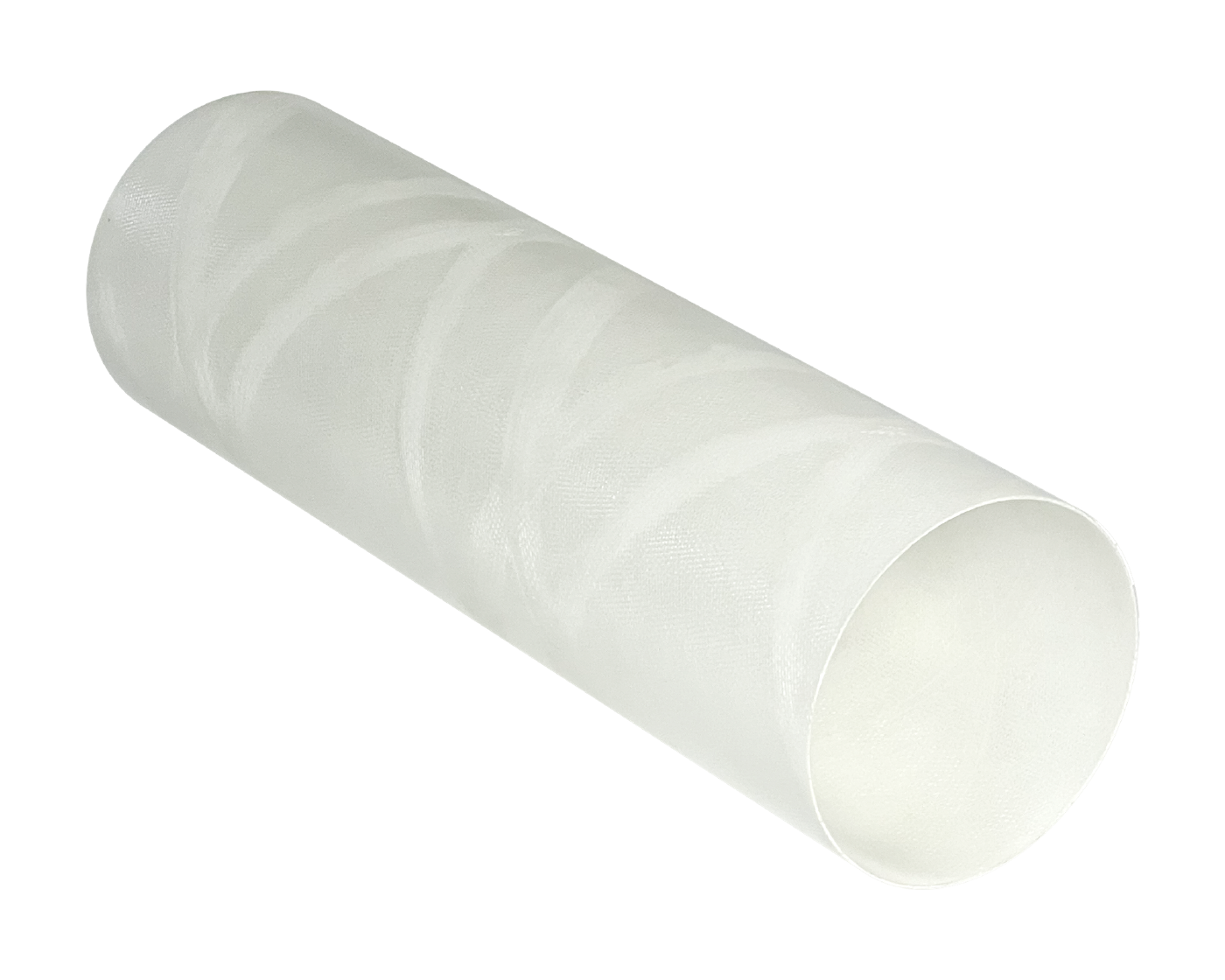

- GFRP thin-wall structure
- Surface hardness
- Shore D90
A glass-fibre reinforced thin wall for the tightest builds. The harder D90 surface protects a wall that has no room for damage.
- Wall thickness
- 1.2 – 2.5 mm
- Structure

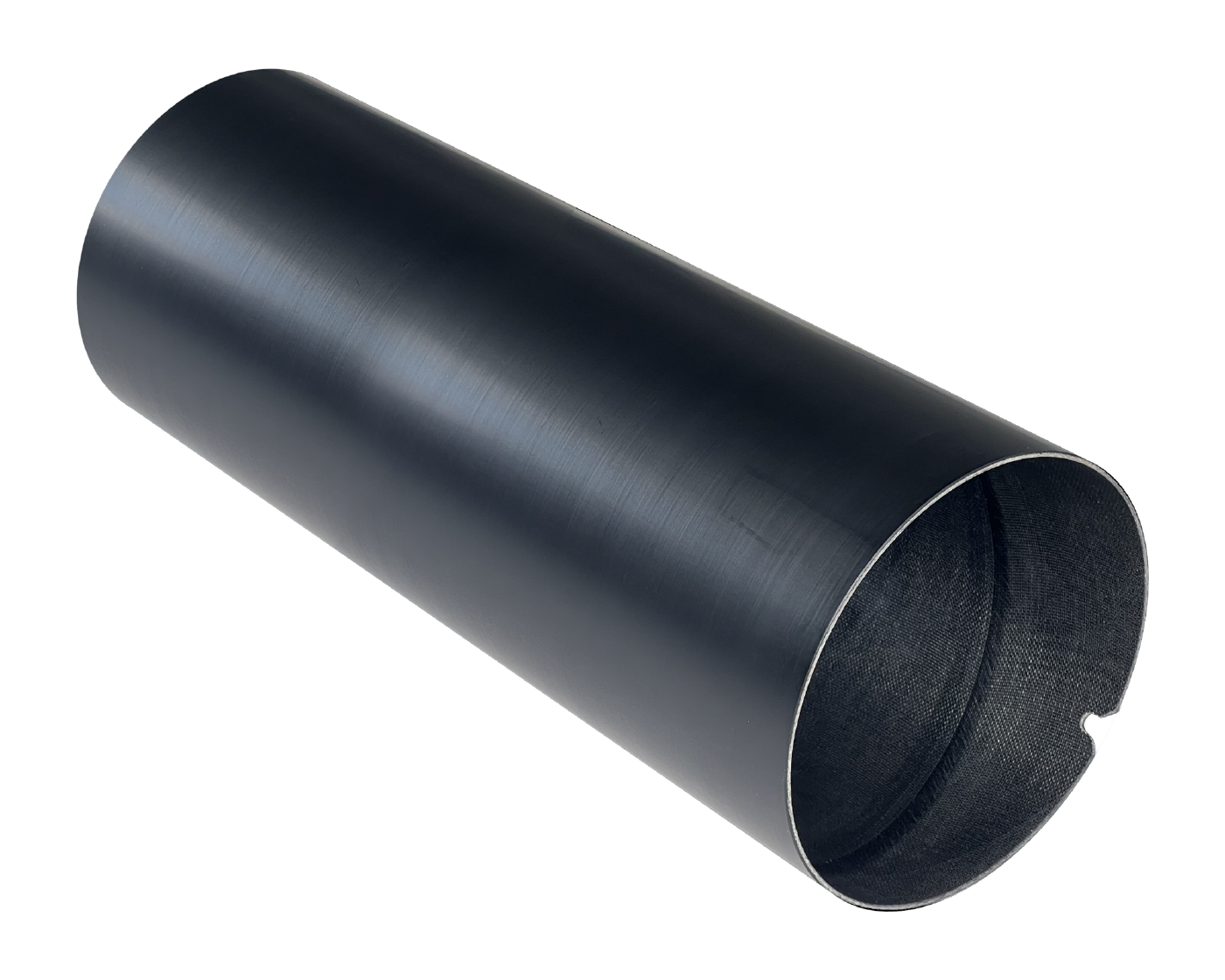

- MCS composite structure
- Surface hardness
- Shore D82
A multi-layer composite that stays round under mounting pressure at thin wall thicknesses.
- Wall thickness
- 2.5 – 10 mm
- Structure

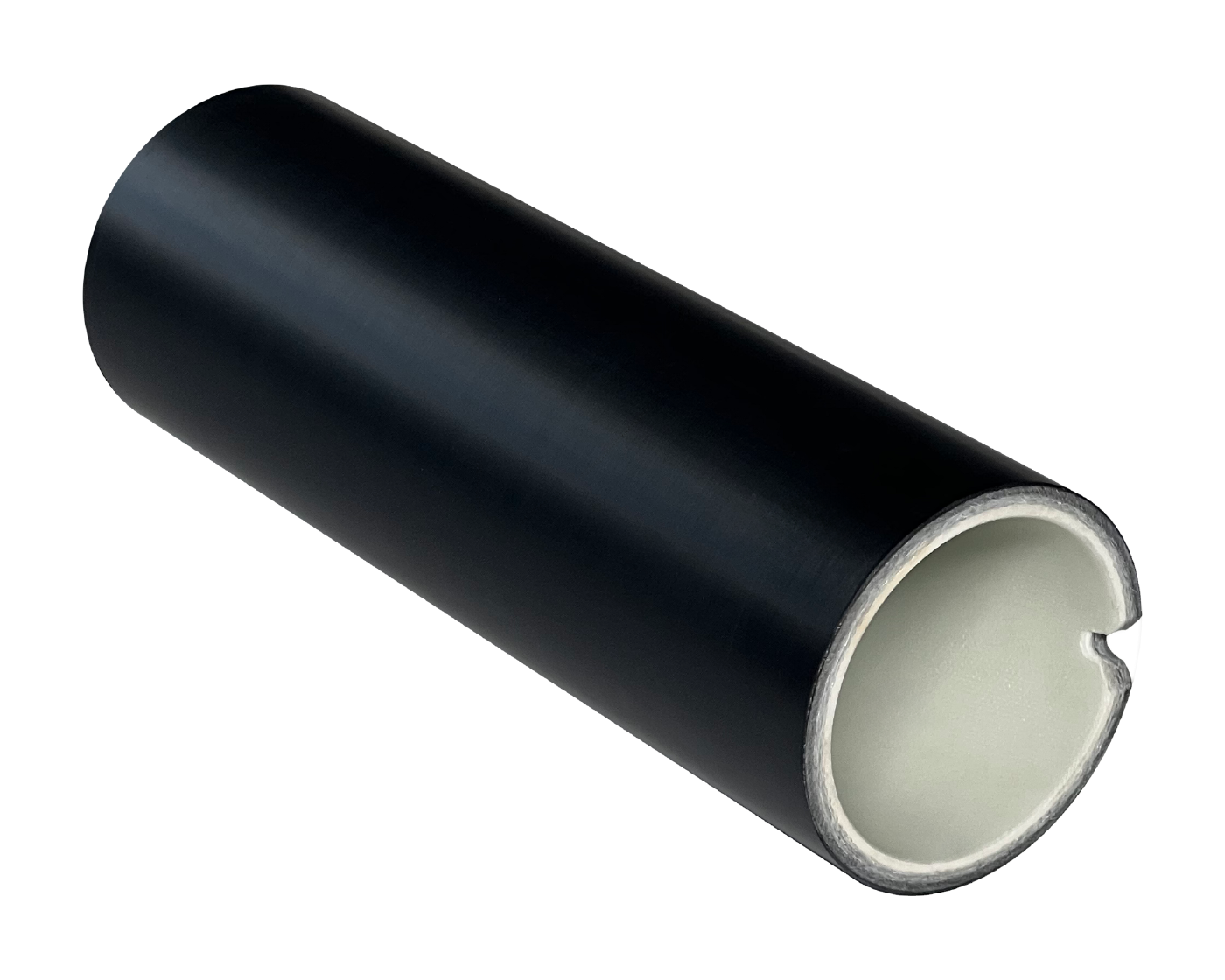

- MCSS “snowflake” composite structure
- Surface hardness
- Shore D82
The workhorse build for mid-range wall thickness, designed for long service under repeated mounting.
- Wall thickness
- 10 – 100 mm
- Structure

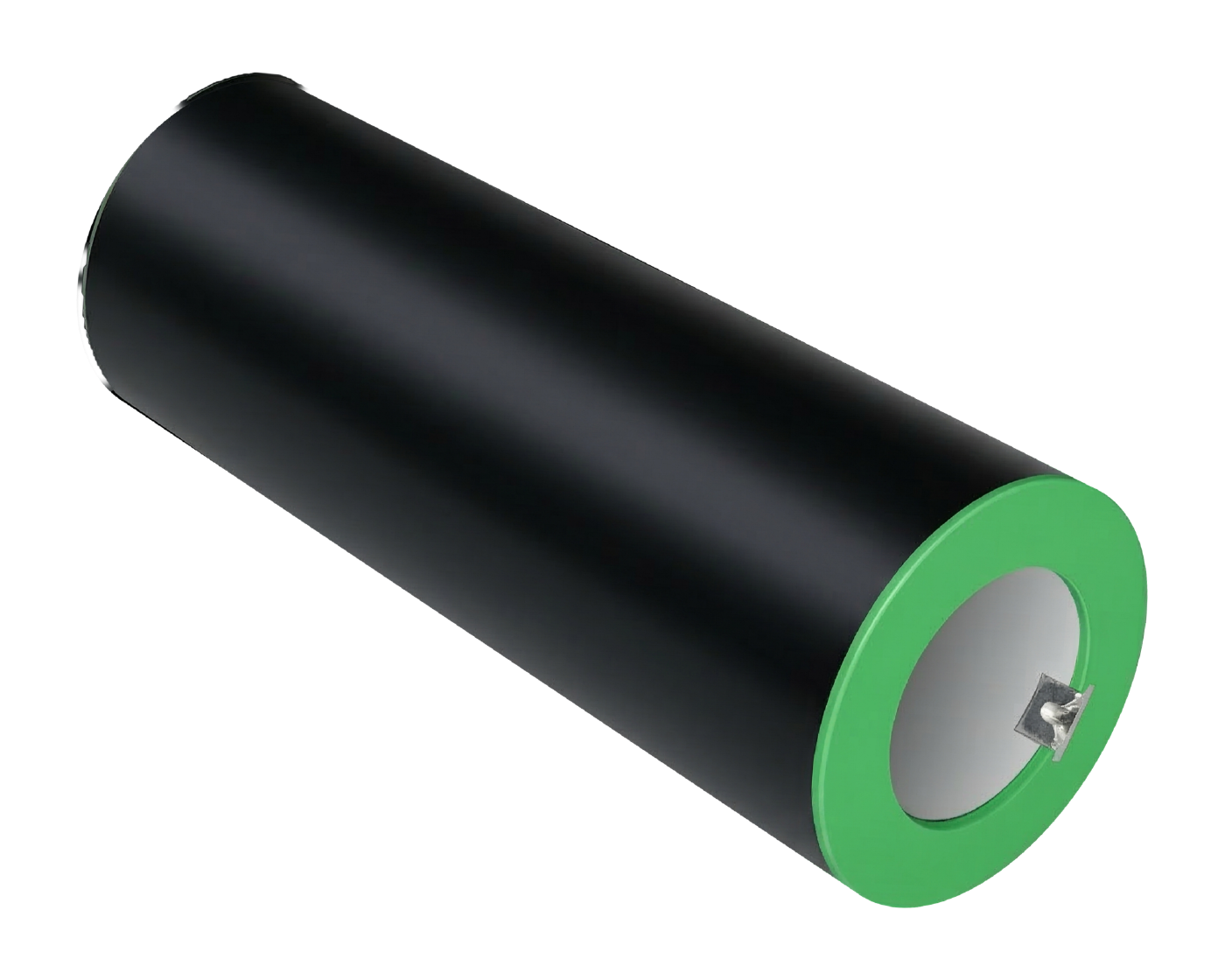

- Aramid honeycomb + SilentShield™
- Surface hardness
- Shore D82
The full six-layer build. About 40% lighter than a conventional sleeve of the same spec, with sealed, impact-absorbing end faces.
Antistatic option, any model

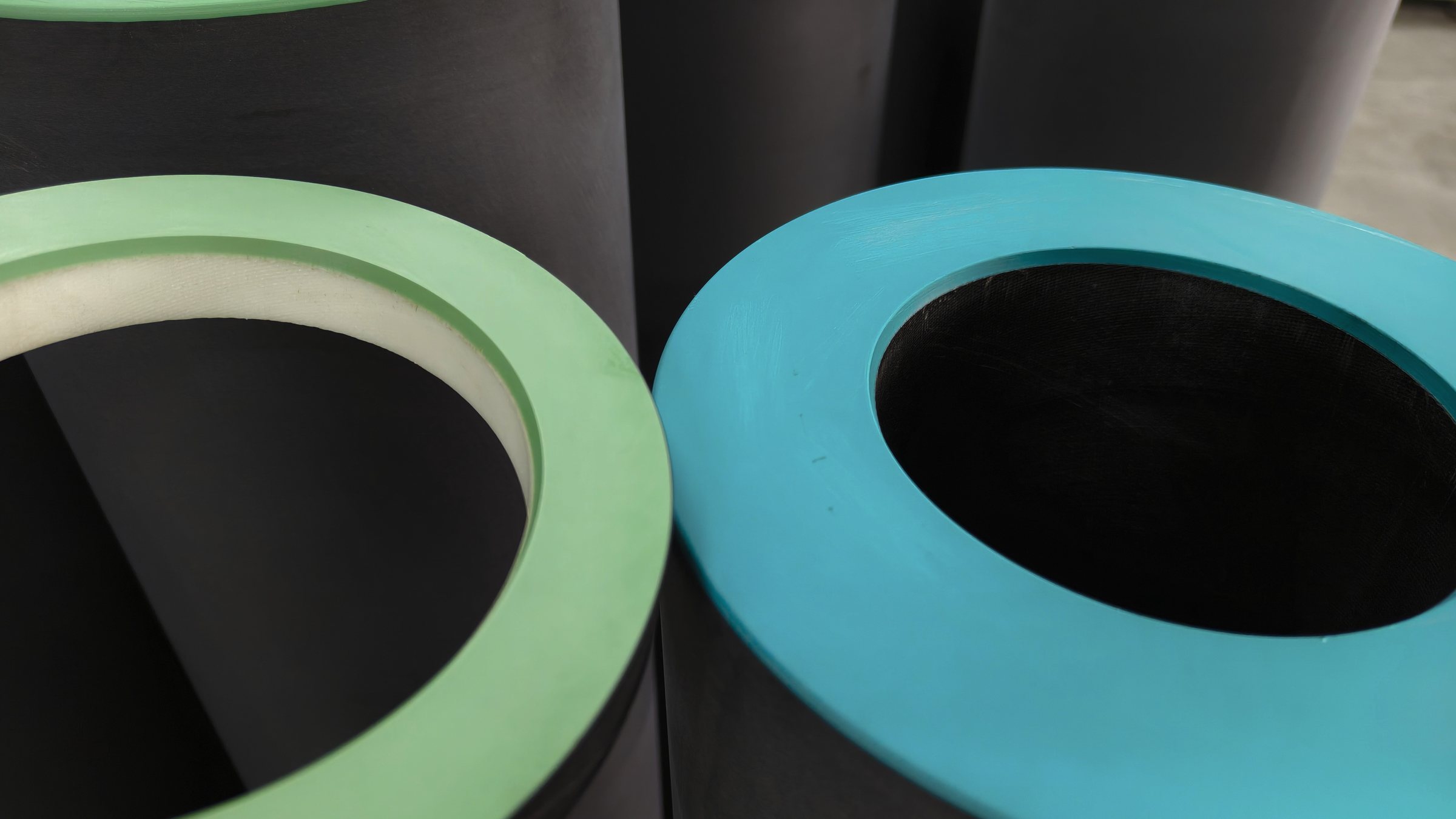

Through-body antistatic construction with resistance to ground below 1×10⁶ Ω, for film printing where static is a problem.
- X-MUT
- X-MTT
- X-MST
- X-MLW

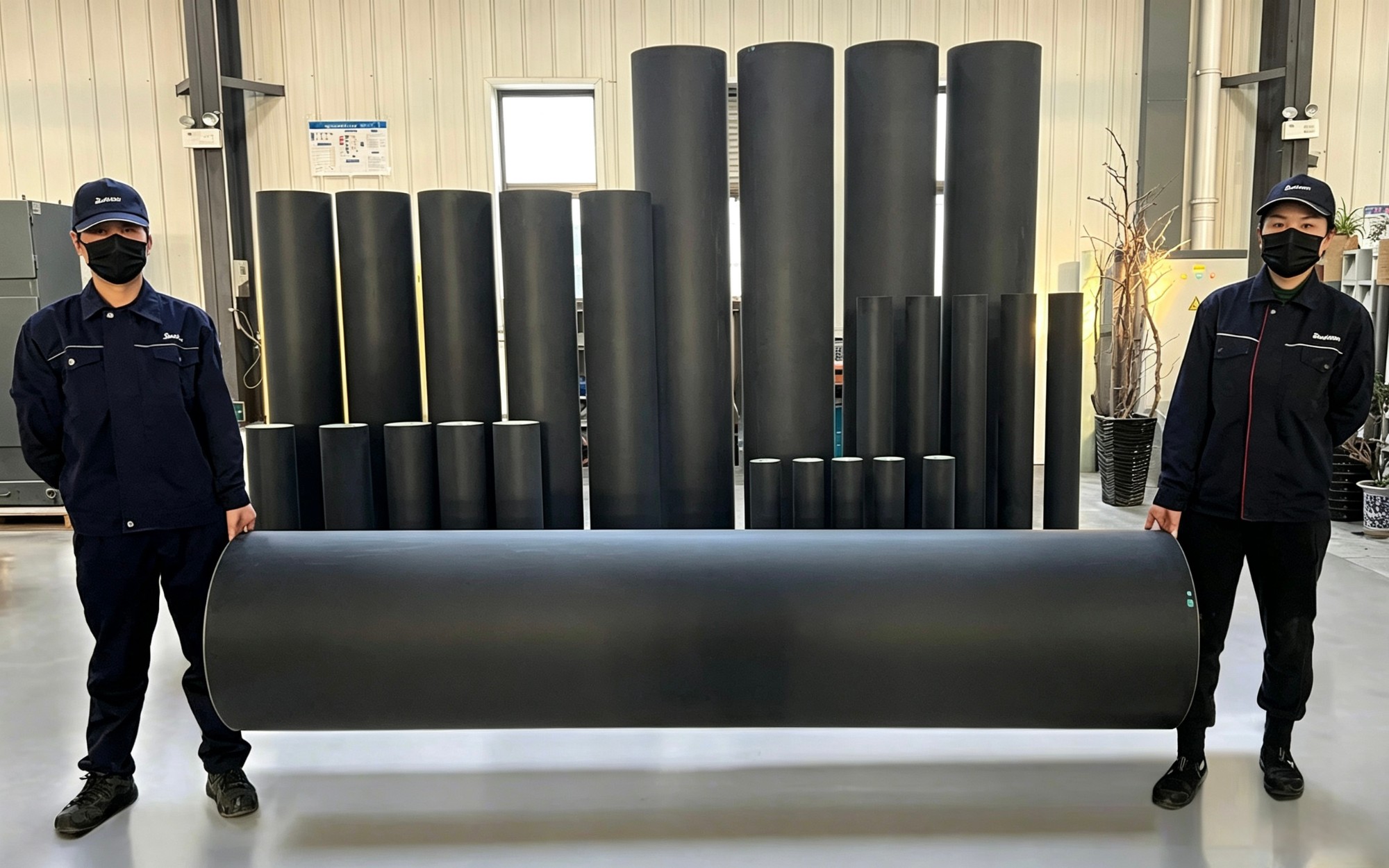

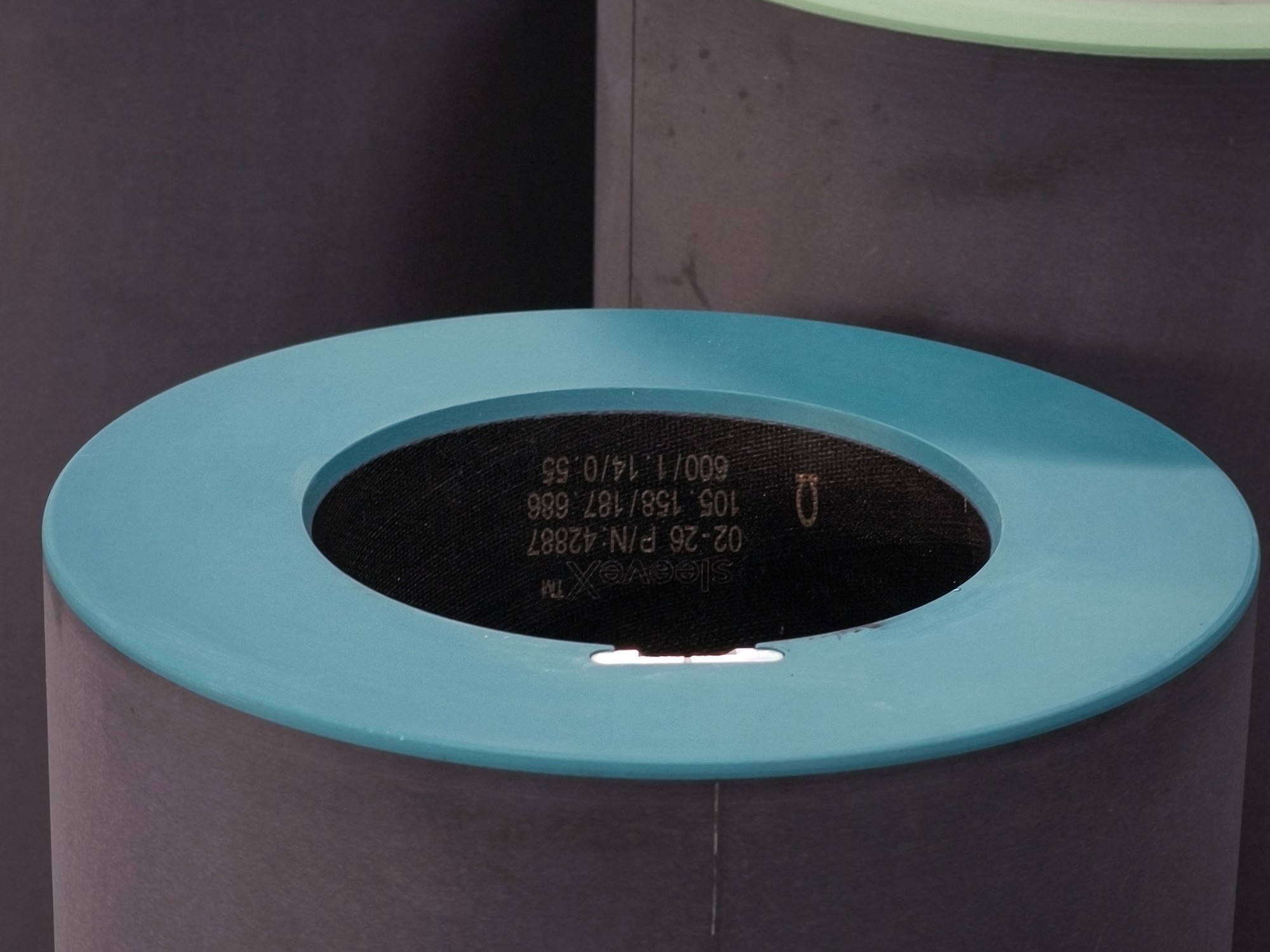

Specification range
Specification range
| Outer diameter | 63 – 575 mm |
|---|---|
| Print repeat | 200 – 1800 mm |
| Sleeve length | 300 – 3000 mm |
| Wall thickness (per side) | 1 – 100 mm |
| Mandrel mould coverage | 70.144 – 490.063 mm |
| Surface | Epoxy resin system, Shore D82 (X-MUT: D90) |
| Antistatic option | Rg < 1×10⁶ Ω |
Shipped tolerances, measured on every sleeve
| Outer diameter | ±0.02 mm |
|---|---|
| Straightness | ≤ 0.015 mm |
| Runout | ≤ 0.02 mm |
| Dynamic balance | G2.5 |
Not sure which model?
Send us the sleeve ID (mandrel OD), the face length and the print repeat you need. The wall thickness follows from those, and the model follows from the wall thickness.
- 01Send the dimensions
Sleeve ID (mandrel OD), face length, print repeat or wall thickness, quantity, and the press model if you know it. A photo of the current sleeve end and notch helps.
- 02We confirm the model and quote
Wall thickness determines the model. We confirm the spec, the antistatic option and the price for the quantity.
Start with one sleeve
Send us the sleeve ID (mandrel OD), face length and repeat of one press. We will quote a matching sleeve for a trial.
